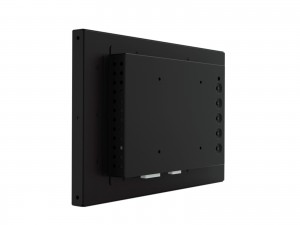

OTL101 10.1″ PCAP Touchmonitor

Brief Description:

OTL101 is a touchmonitor using industrial grade LED, with low power consumption, ultra-thin body design, high resolution display and excellent multi-touch interactive experience. Compared to the average consumer TV or monitor, the OTL101 industrial-grade high performance and professional design is better suited for  applications in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education and healthcare.


Product Detail

Product Tags

Name

10.1 Inch Open Frame Touch Monitor

Model

OTL101

LCD Panel Parameters

Display Technology

Active Matrix TFT-LCD with LED Backlight

Aspect Ratio

16:10

Active Area (W × H)

216.96×135.60mm

Native Resolution

1280×800@60Hz

Response Time (Typ.)

25ms

Display Colors

16.2million

Luminance (Typ.)

500nits; with PCAP 420nits

Contrast Ratio (Typ.)

800:1

Viewing Angle (Typ.)

Horizontal (left/right) CR≥10 85°/85°

Vertical (up/down) CR≥10 85°/85°

Touch Screen Parameters

Touch Technology

Projected Capacitive (PCAP)

Surface Treatment

Tempered Strengthened

Optional:Anti-glare

Active Area(W x H)

217.96×136.6±0.3mm

Thickness(Total)

2.85±0.2mm

Light Transmission

≥83%

Response Time

8ms

Touch Screen Interface

USB

Touch Point

10

Overall Parameters

Case/Bezel Color

Black

Mounting Options

VESA: 75×75 mm

Outline DimensionsW×H×D

263.0mm × 181.0mm× 38.0mm

Power Supply

External Adapter: 100-240V AC, 50-60 Hz

Input Voltage Range: +12V DC ± 5%

On Screen Display (OSD)

Control (back): Power, Auto, Up, Down, Menu

Power Consumption

MAX: 15W

Speaker

NA

Webcam

NA

Operating Altitude

3000m

Temperature Range

Operating: 0to 50, storage: -20to 60

Humidity (Non Condensing)

Operating: 20% to 80%, storage: 10% to 90%

I/O

VGA, DVI, USB (Type B)

Accessories

Cables: VGA×1, USB×1, 1.5m Length

Carton Box Dimensions
(1 unit in 1 carton)

440mm (L) × 370mm (W) × 170mm (H)

Weight

Net: 3.46kg Gross: 5.1kg

MTBF

50,000 hours demonstrated

Agency Approvals

CE, FCC

Warranty

3 years
