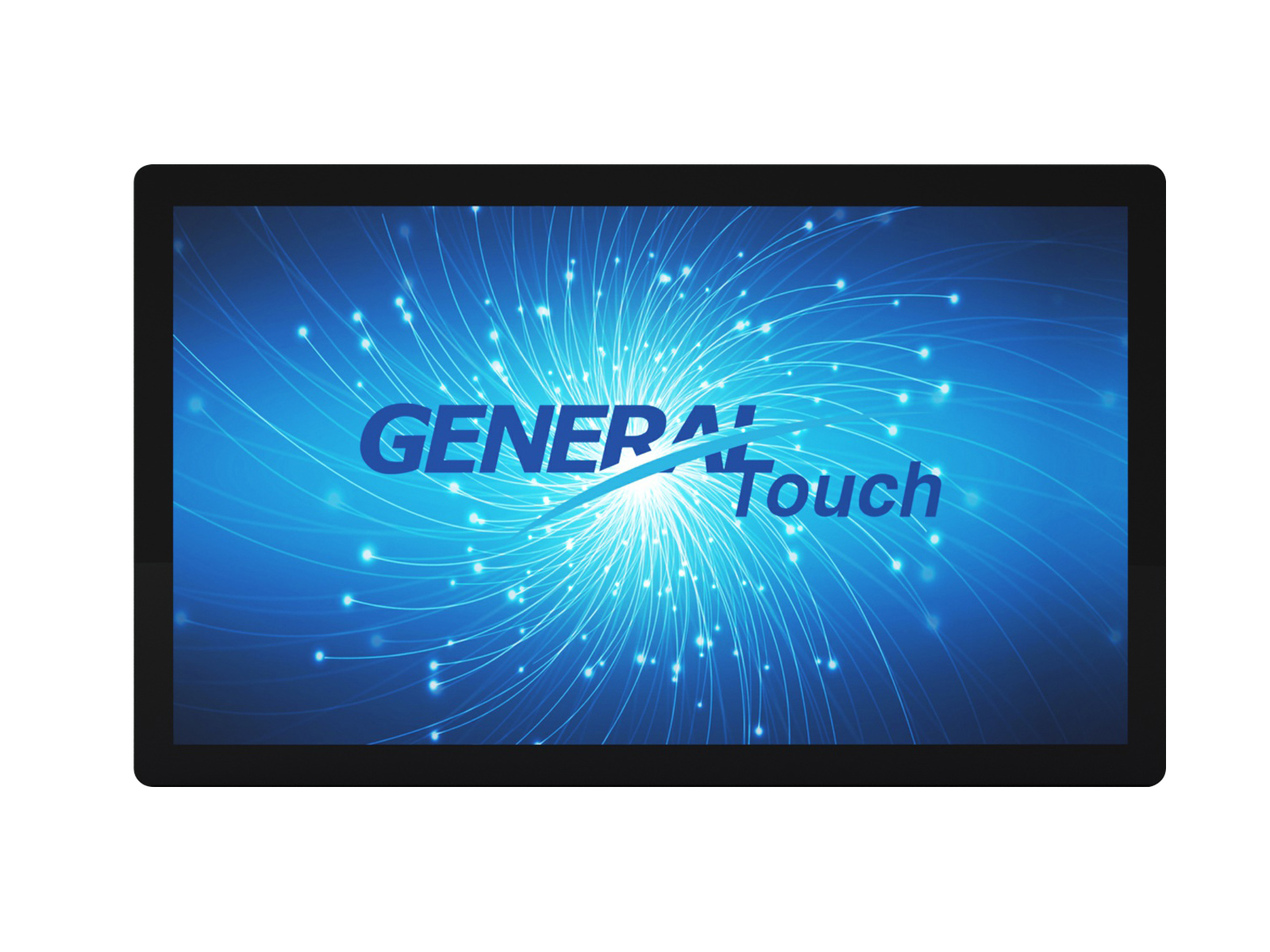

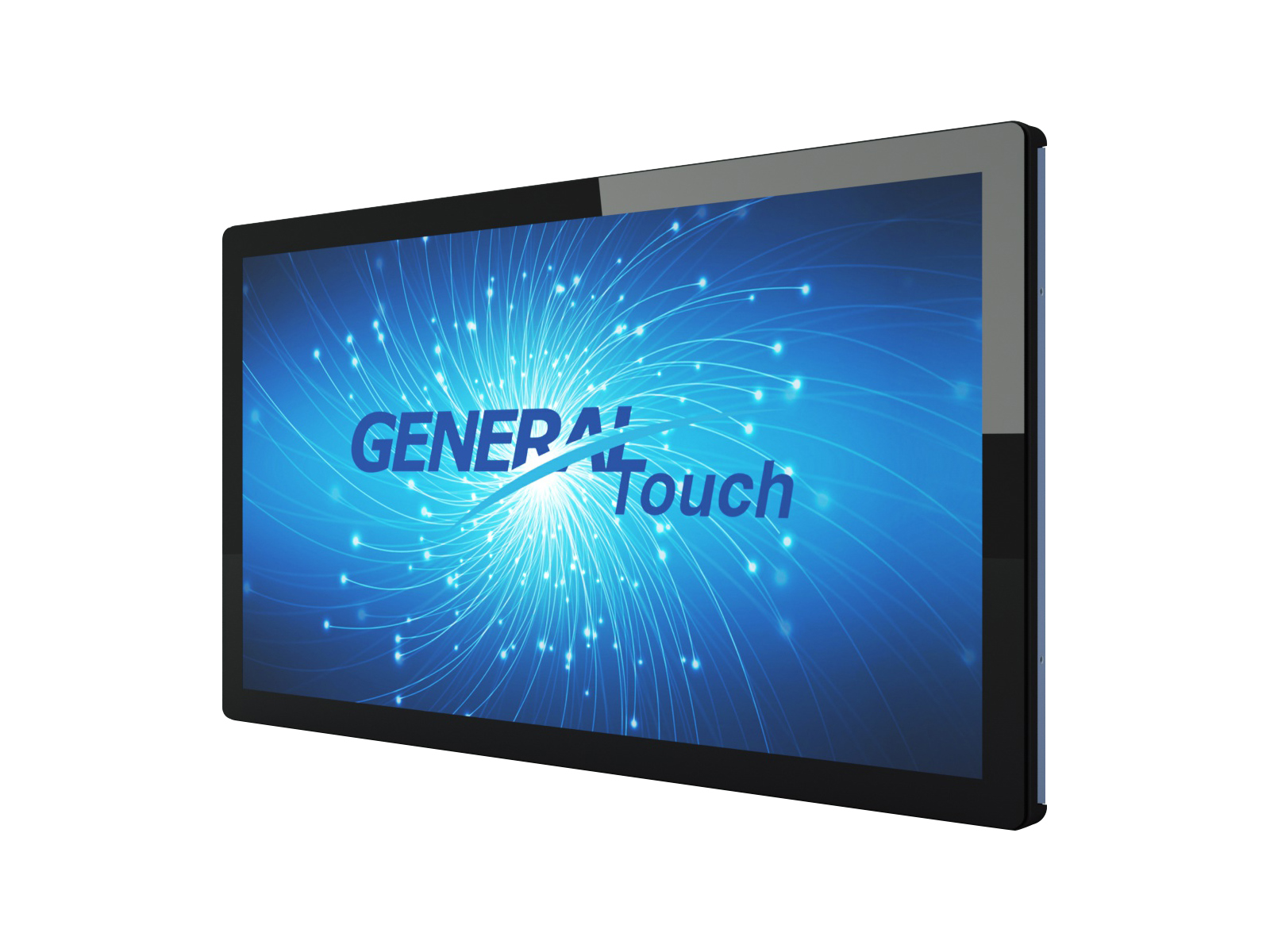

OTL246 23.8″ PCAP Touchmonitor

Brief Description:

OTL246 is a touchmonitor using industrial grade LED, with low power consumption, ultra-thin body design, high resolution display and excellent multi-touch interactive experience. Compared to the average consumer TV or monitor, OTL246 industrial-grade high performance and professional design is better suited for applications in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education and healthcare.


Product Detail

Product Tags

Name

23.8″ Open Frame Touchmonitor

Model

OTL246-RC6000-UH4200-1.0

LCD Panel Parameters

Display Technology

Active Matrix TFT-LCD with LED Backlight

Aspect Ratio

16:9

Active Area (W × H)

527.04 x 296.46 mm

Native Resolution

1920 × 1080 @ 60 Hz

Response Time (Typ.)

16 ms

Display Colors

16.7 million

Luminance (Typ.)

400 nits; with P-Cap 332 nits

Contrast Ratio (Typ.)

3000:1

Viewing Angle (Typ.)

Horizontal (left/right) CR≥10 89°/89°

Vertical (up/down) CR≥10 89°/89°

Touch Screen Parameters

Touch Technology

Projected Capacitive (P-Cap)

Surface Treatment

Strengthened

Optional:Anti-glare

Active Area(W × H)

528.0 x 297.5 ± 0.3 mm

Thickness(Total)

5.4 ± 0.3 mm

Light Transmission

≥83%

Response Time

8~10 ms

Touch Screen Interface

USB

Touch Point

10

Overall Parameters

Mounting Options

VESA: 100 × 100 mm; 75 × 75 mm; Side mounting

Outline DimensionsW×H×D

569.2 mm × 341. 1 mm × 42.0 mm

Power Supply

Input Voltage Range: +12VDC ± 5%, DC Jet ∅2.5 mm

On Screen Display (OSD)

Control (back): Power, Auto, Up, Down, Menu

Power Consumption

28W

Speaker

NA

Webcam

NA

Operating Altitude

3000 m

Temperature Range

Operating: 0to 40, storage: -20to 60

Humidity (Non Condensing)

Operating: 20% to 80%, storage: 10% to 90%

I/O

VGA, HDMI, USB (Type B,for touch)

Accessories

Cables: VGA × 1, USB × 1, 1.5 m Length

Carton Box Dimensions

520 mm (L) × 460 mm (W) × 190 mm (H)

Weight

Net: 5.3 Kg

Gross: 8.6 Kg

MTBF

50,000 hours demonstrated

Agency Approvals

CCC, CE, FCC

Warranty

3 Years

Drawings and Spec Sheet
Spec Sheet Download
Dimensional Drawing Download
